HAVE YOUR OWN DRAWING?
If you have a drawing that you would like us to see, then upload it here.
Select "Yes" then click the "Browse" button to find your drawing on your computer.
Once you've browsed for your drawing, click the "Submit" button to upload it to our servers.
Make sure the file is no larger than 5MB and should be one of these file formats: .jpg, .gif, .png, .pdf, .dwg, .dwf, .dxf, .sldrw, .igs, .step, .stp, skp, .dae.

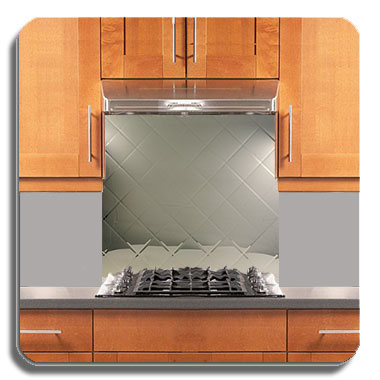

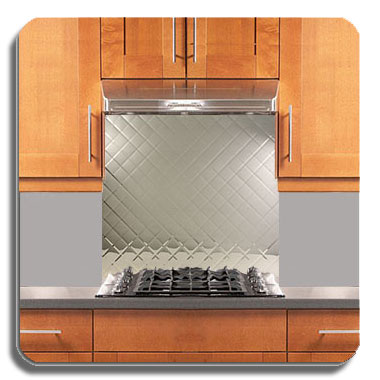

SELECT YOUR EMBOSSED TYPE

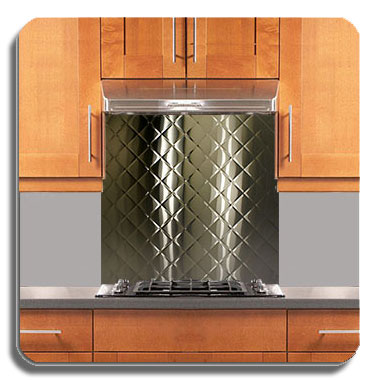

You can choose either the Fine Line or Beveled embossed type.
SELECT METAL THICKNESS
Stainless:
Light Duty is 24 gauge (.0235")
Medium Duty is 22 gauge (.0293")
Heavy Duty is 20 gauge (.0355")

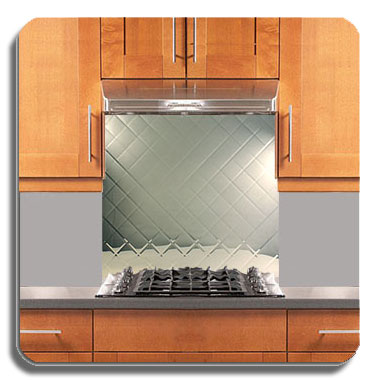

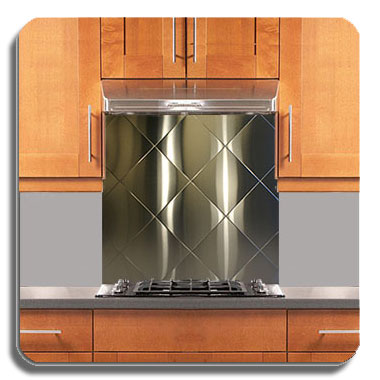

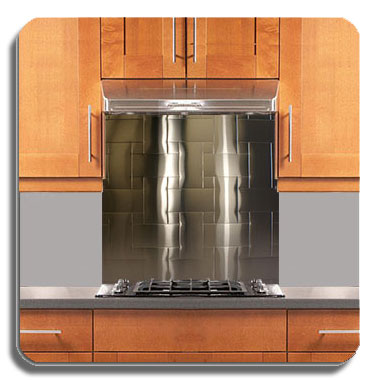

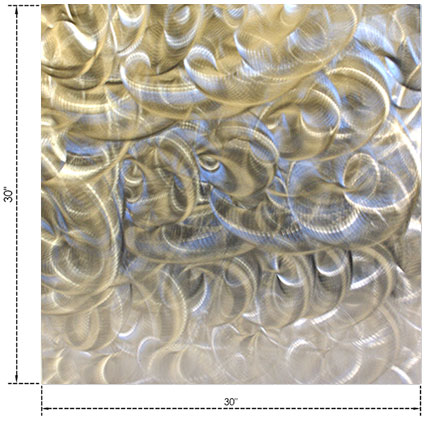

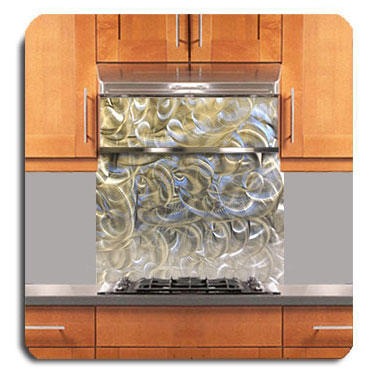

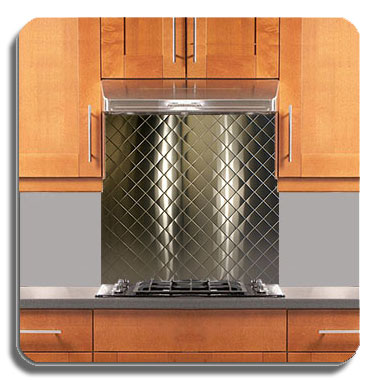

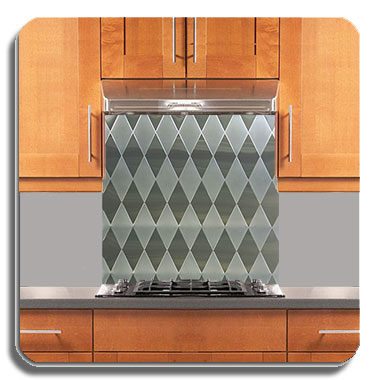

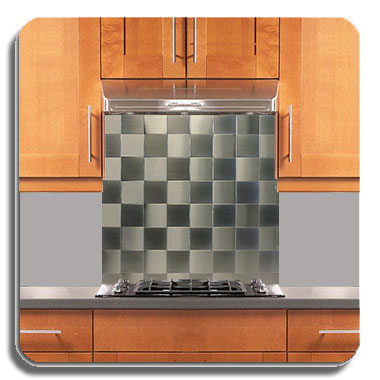

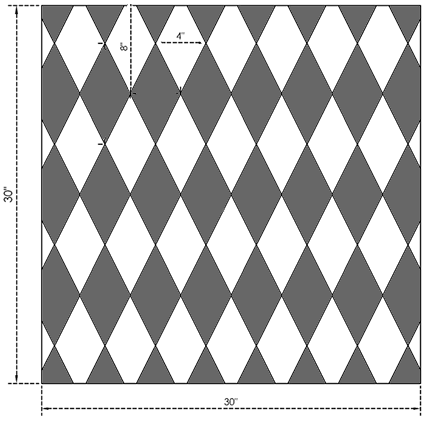

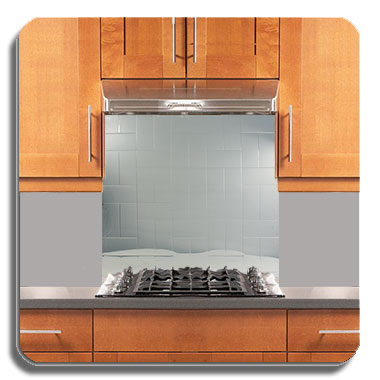

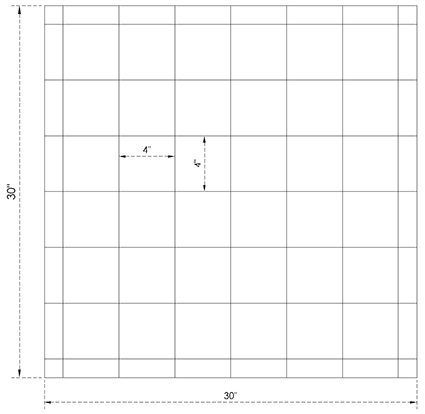

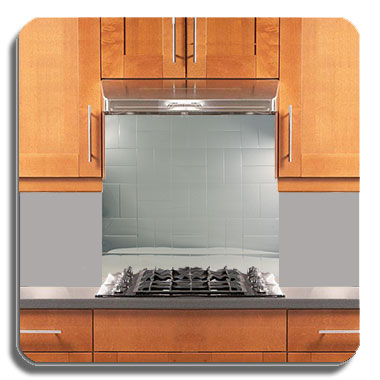

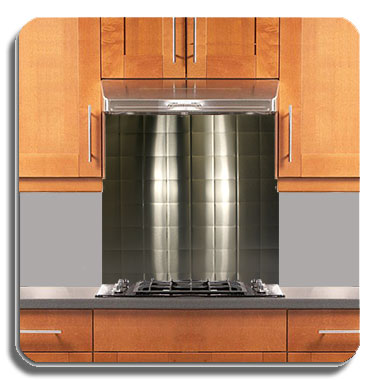

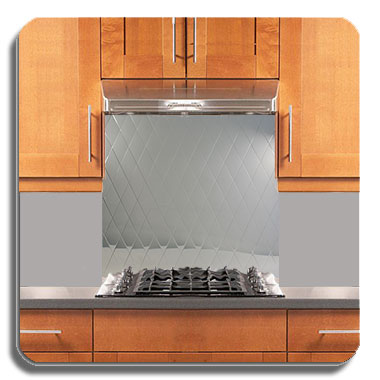

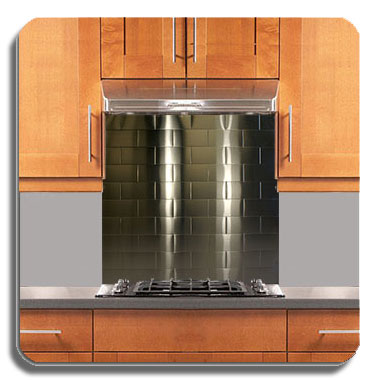

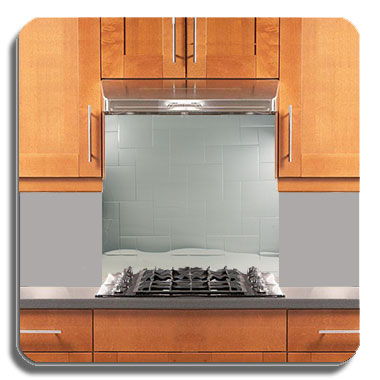

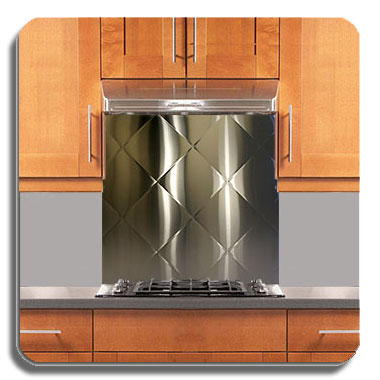

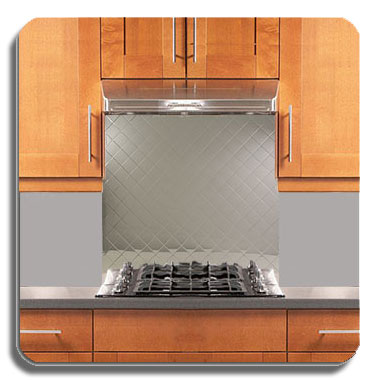

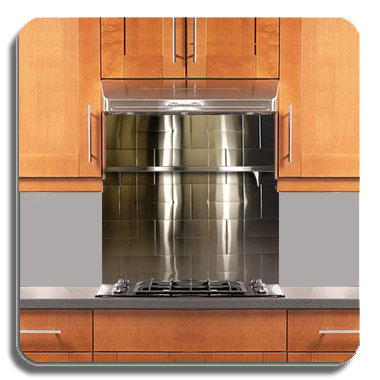

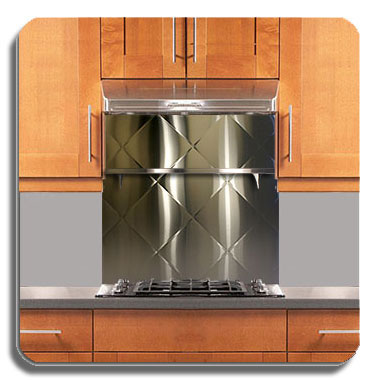

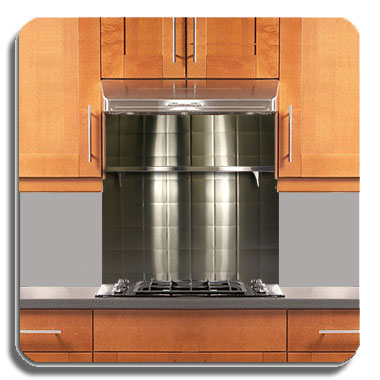

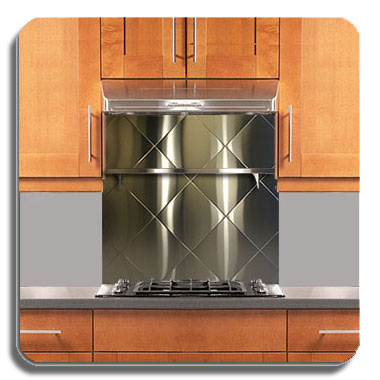

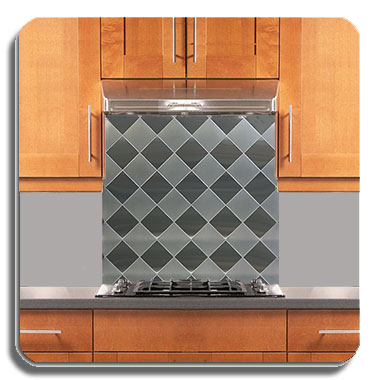

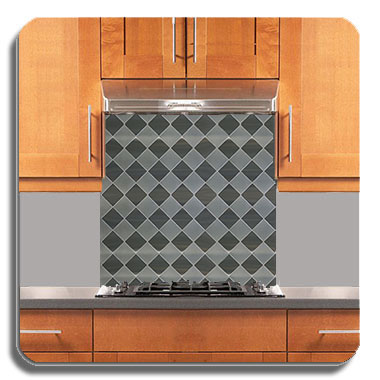

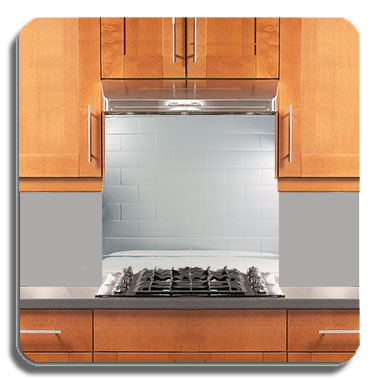

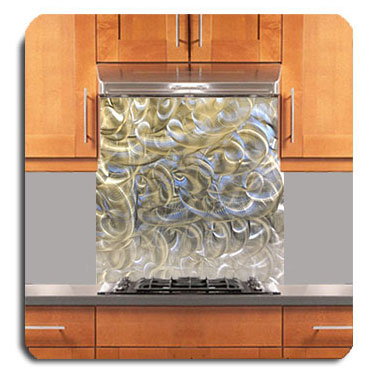

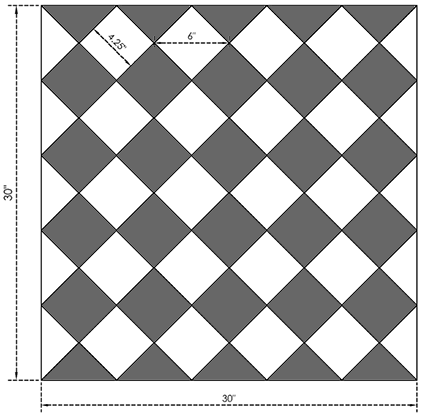

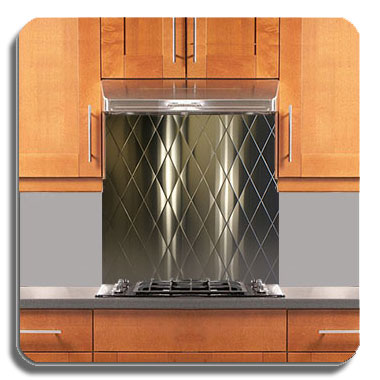

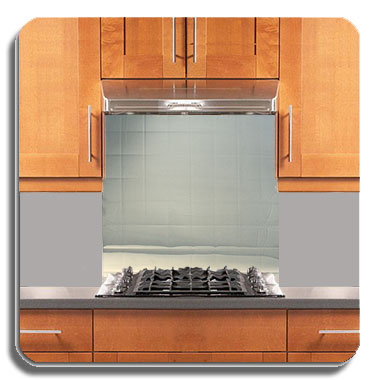

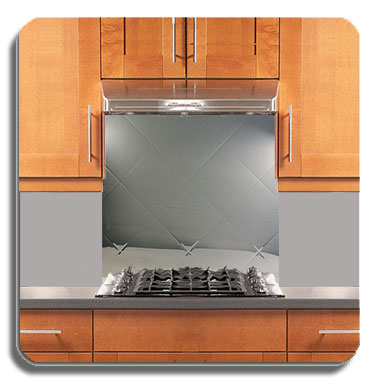

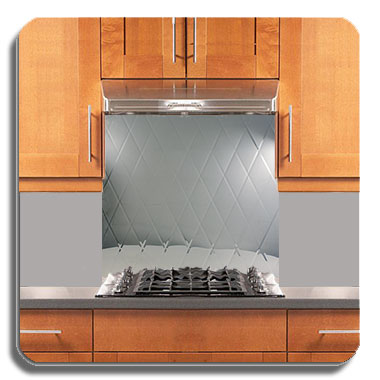

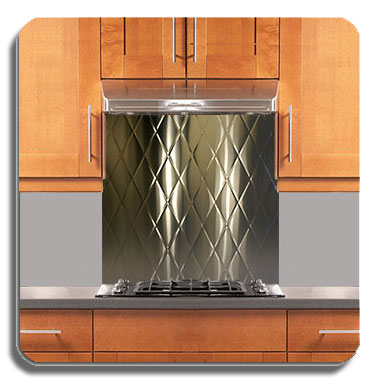

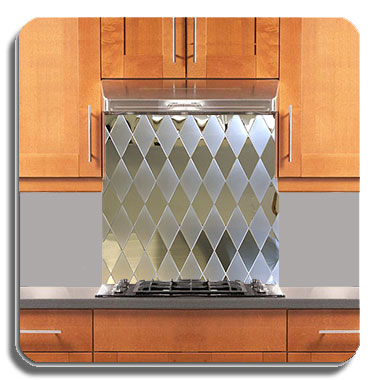

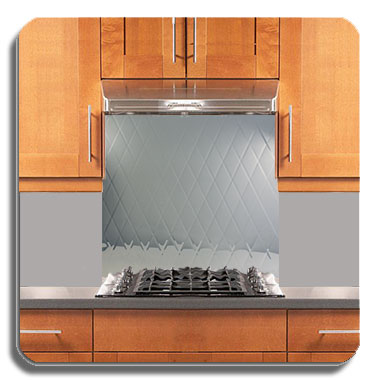

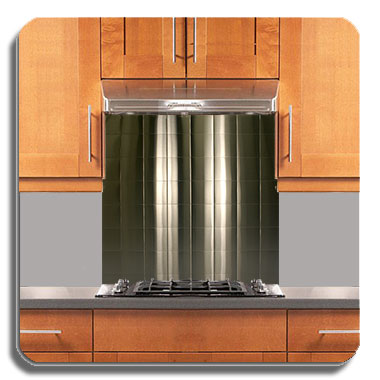

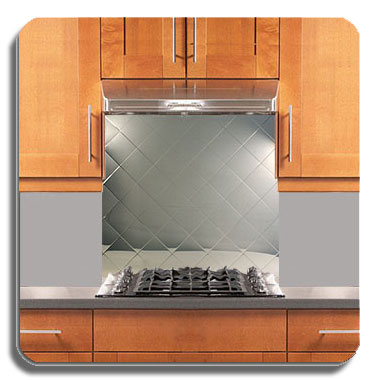

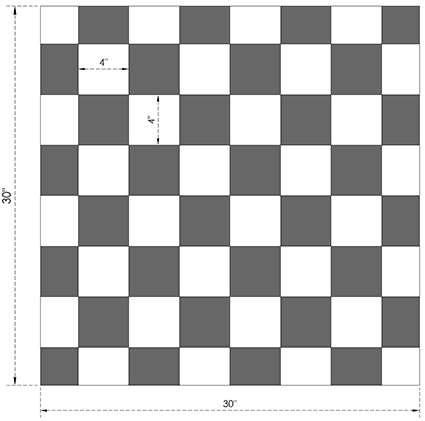

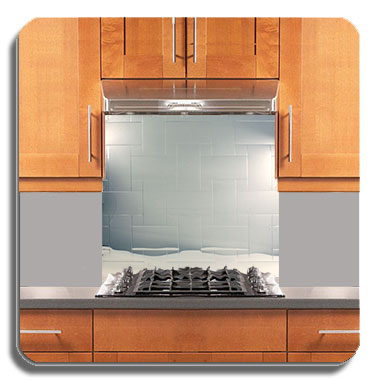

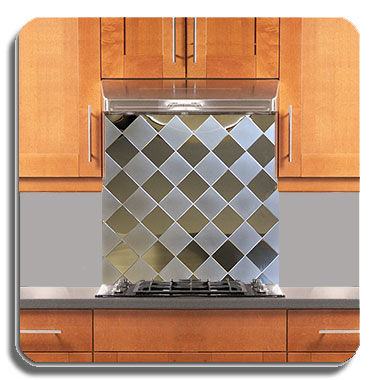

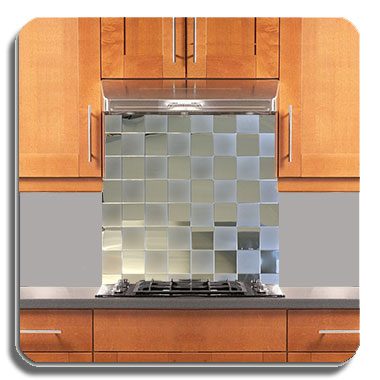

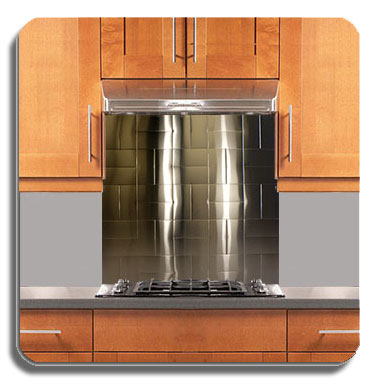

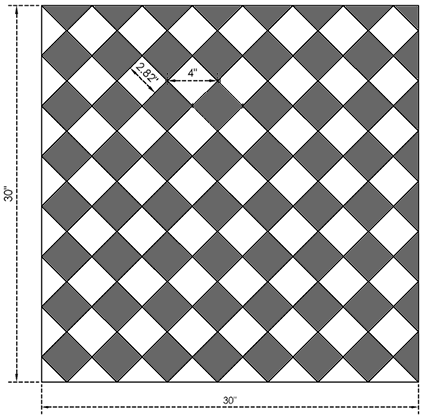

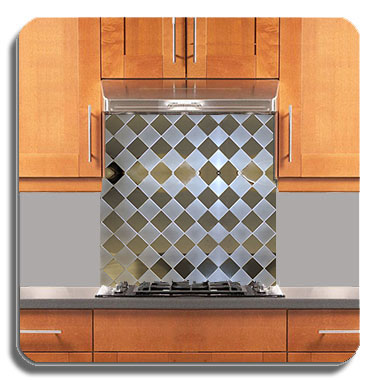

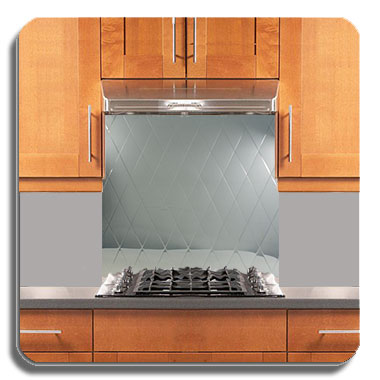

SELECT YOUR PATTERN
Select any of the patterns below.
SELECT YOUR SIZE
Stock Size:
Select one of our pre-cut sizes.
If you choose to add the hemming option, these measurements account for the hemmed edges.
Custom Size:
Enter your own height and length.
If you choose to add the hemming option, the measurement you enter will account for the hemmed edges.
GRAIN PREFERENCE
No Preference - Selecting this will have the grain run either vertically or horizontally.
Yes - Selecting this will have the grain run horizontally along the length. An additiona 10% charge will be added for that particular piece.
Note: If the length of the item is over 47", the direction of the grain will run length of the cut.
CUSTOMIZE SIZE
This is where you can upload a file.
SELECT EDGE/BACKING OPTION
Backer Information:
- Backer board thickness: 3/8"
- All backer board edges will be covered by the metal
Hemming Information:
- Hemming is a fabrication option used to keep the outside edges of the sheet from being sharp.
- The hems will give the edges a finished appearance.
- The hems will add a degree of rigidity to the backsplash.
- When you enter the size dimensions of the piece, that will be the "finished" size. We will compensate the extra material for the hem.
- Hemmed edges are not sharp, they can be touched with the bare hand with very little to no risk of being cut.
- The hemming is approximately 1/8" thick around the edges, leaving 1/16" space in the back of the backsplash.
- The hemming option is for all four sides.
 |
 |
HEMMED EDGE:
304 Stainless, 24 Gauge #4 Polish Finish with hemmed edges. |
HEMMED EDGE (BACK):
304 Stainless, 24 Gauge #4 Polish Finish with hemmed edges looking at the back. |
 |
REGULAR CUT EDGE:
304 Stainless, 24 Gauge #4 Polish Finish with regular cut edging.
|
SELECT MOUNTING OPTION
Select your preferred mounting option:
- None - no mounting options included
- Holes - 1/8" holes located about 3/4" in from each corner
(mounting "decorative" screws are NOT included with holes)
- Tape - double-sided tape to help hold backsplash in place while construction adhesive sets.
Not recommended without hem, as tape will cause backsplash to sit off the wall
(construction adhesive is NOT included)

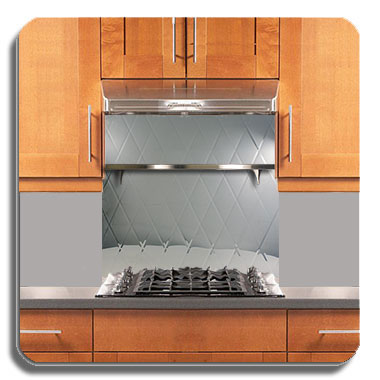

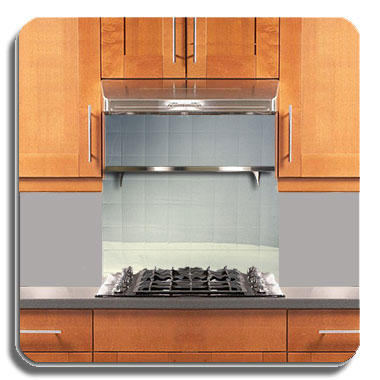

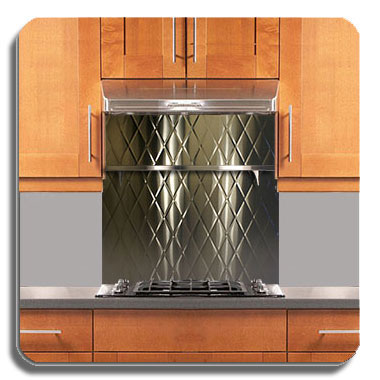

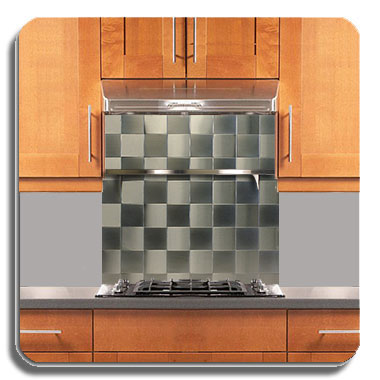

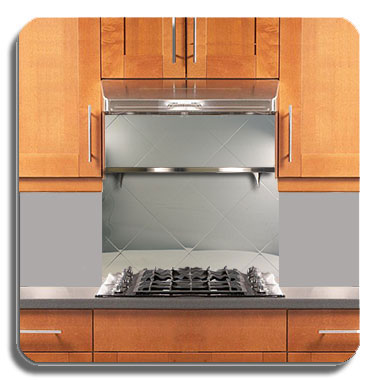

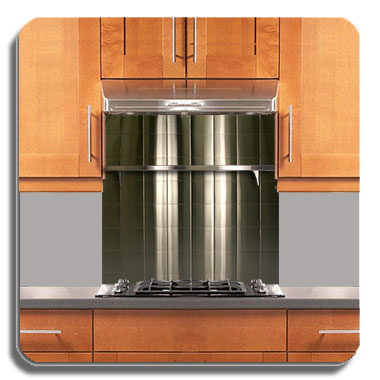

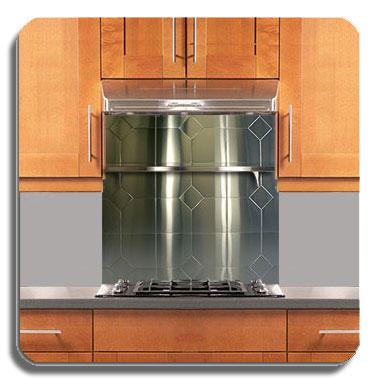

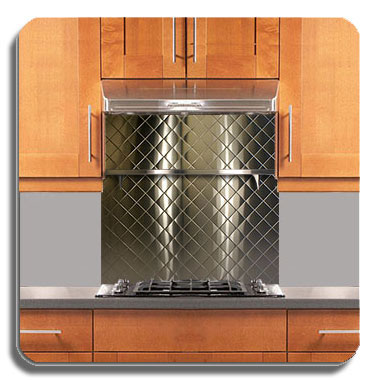

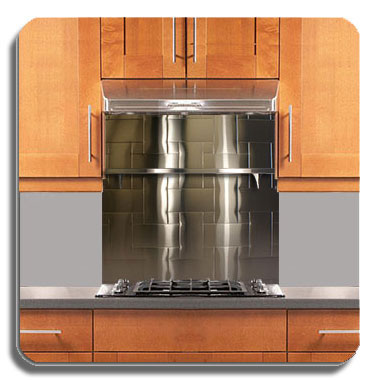

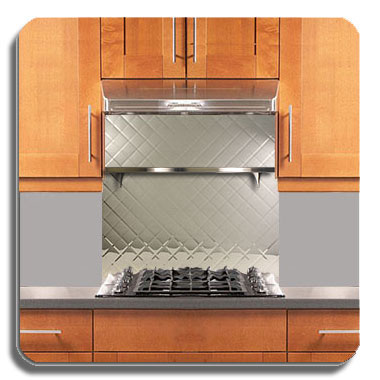

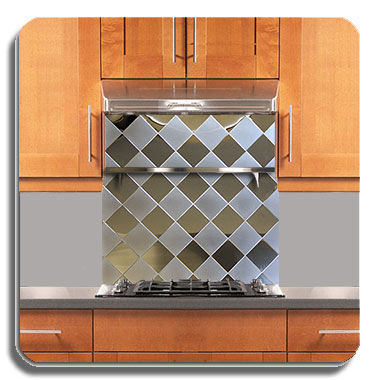

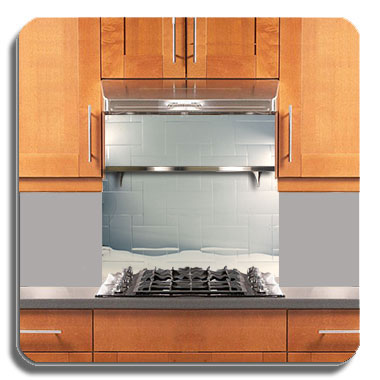

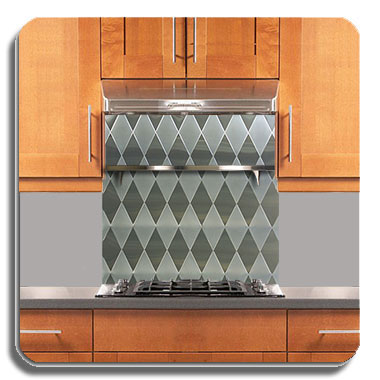

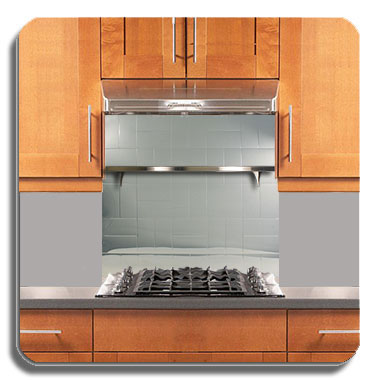

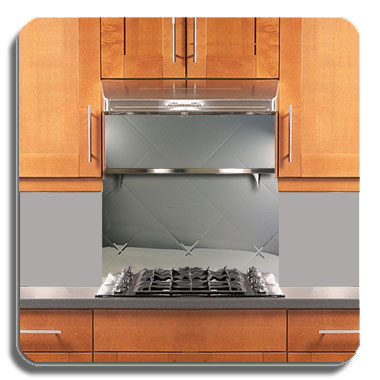

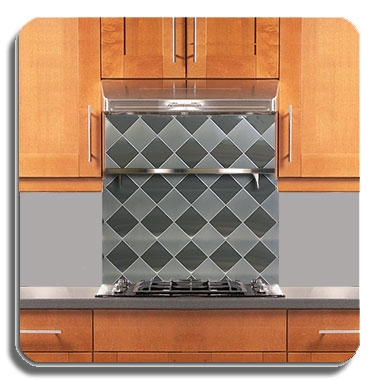

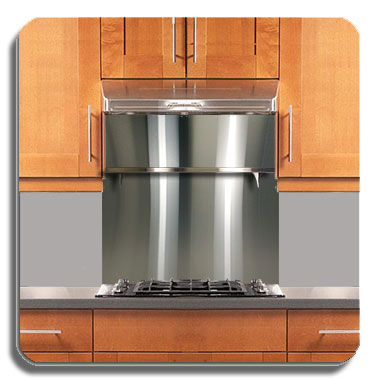

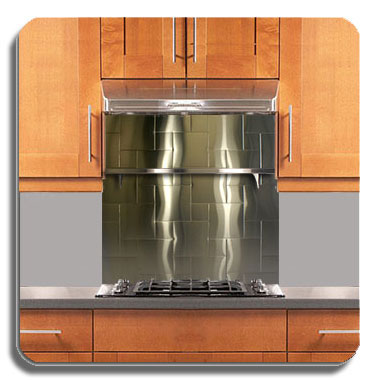

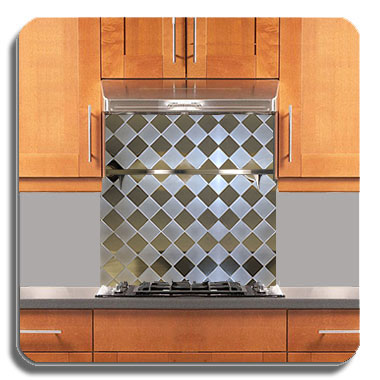

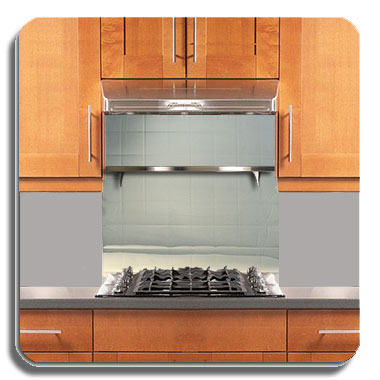

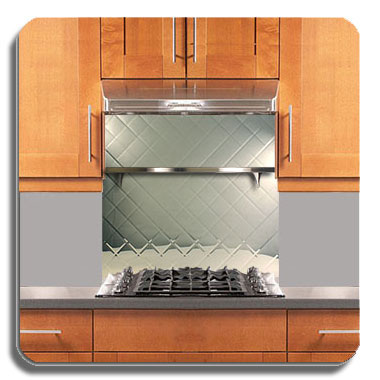

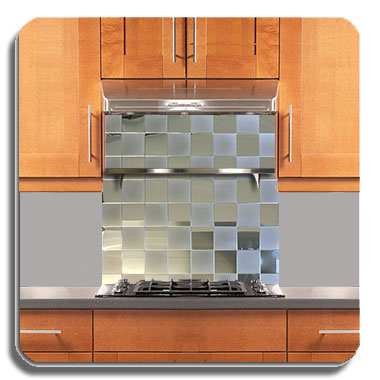

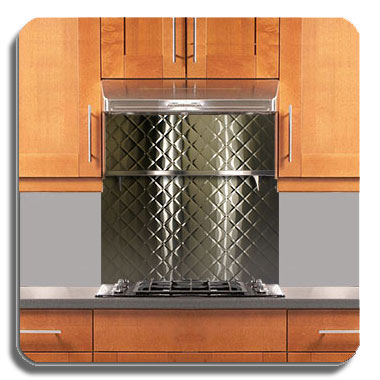

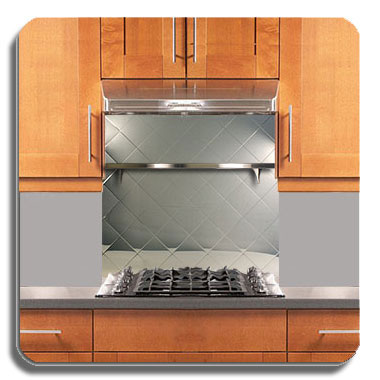

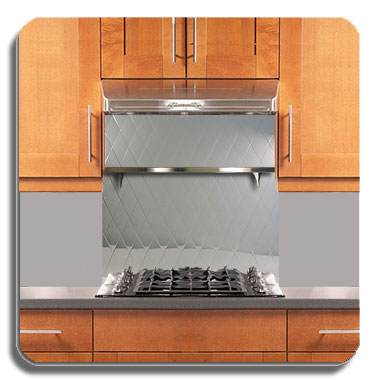

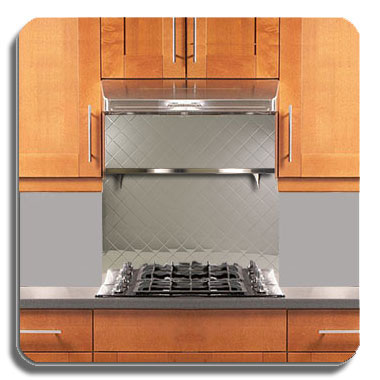

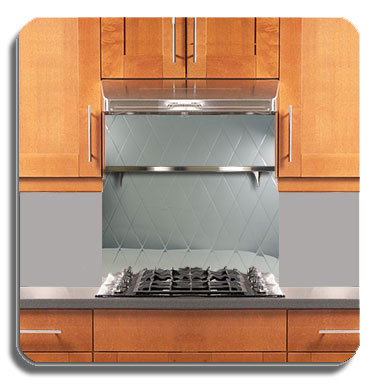

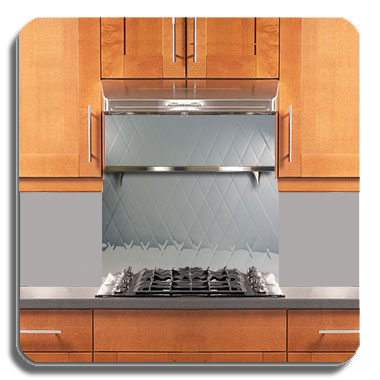

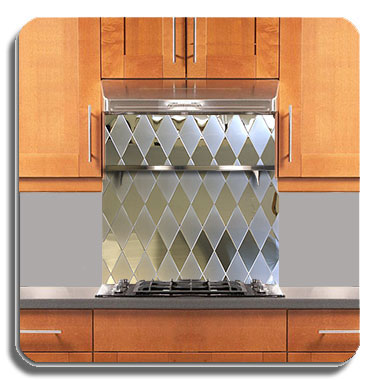

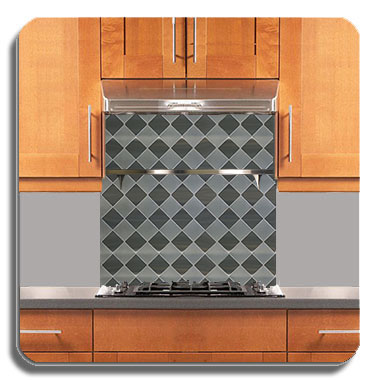

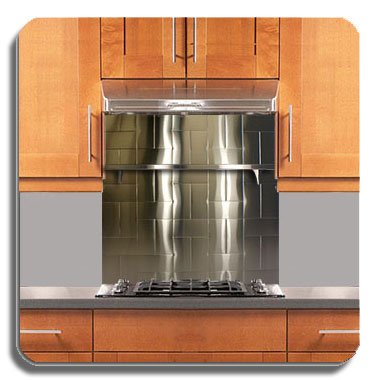

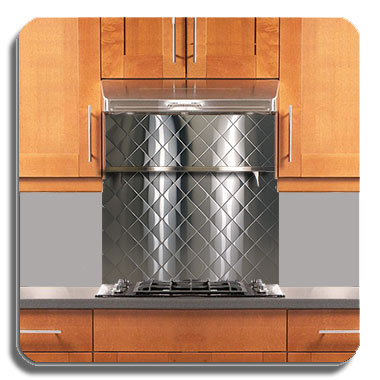

SELECT SHELF OPTION
Select a shelf option:
Selecting the shelf option requires that you select the 'Backer' Edge/Backing Option and Heavy Duty 20G thickness.
- 6" deep stainless vented shelf
- Made from the same heavy duty 20 gauge stainless steel
- Comes with two brackets for easy 'snap-on' installation
ENTER A QUANTITY
Enter the total number of backsplashes of this size/type needed.
You will see the Weight and Price "per piece", as well as the "total" Weight and Price.
