Trim Molding - 316L Stainless 2B Finish
Jump To Cost Calculator
Description
Product Description

These 316L stainless steel 2B finish trim moldings are made from the same 24 gauge 316 stainless steel that we sell in sheet form. They are used to attach sheets as wall coverings and backsplashes, along with providing aesthetic covering for seams between sheets and around corners. Our trim moldings have deep pockets to allow for variance in the existing wall and also have extra wide nailing strips to make installation more convenient.

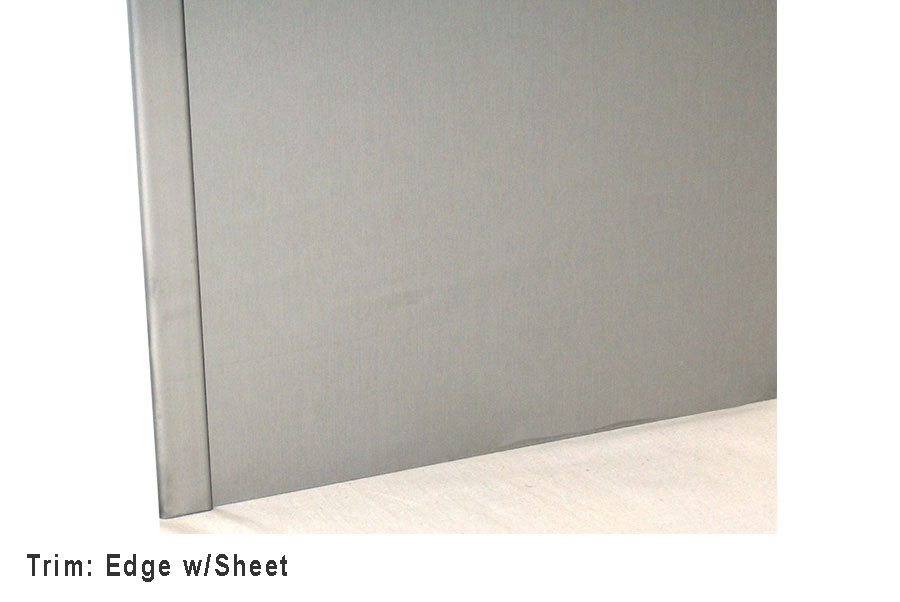

Edge
The edge trim molding is made from our 24 gauge 316 stainless steel sheet stock. Edge trim molding is used to make a finished edge. The pocket is 1", and you do not need to subtract any for this specific trim molding.

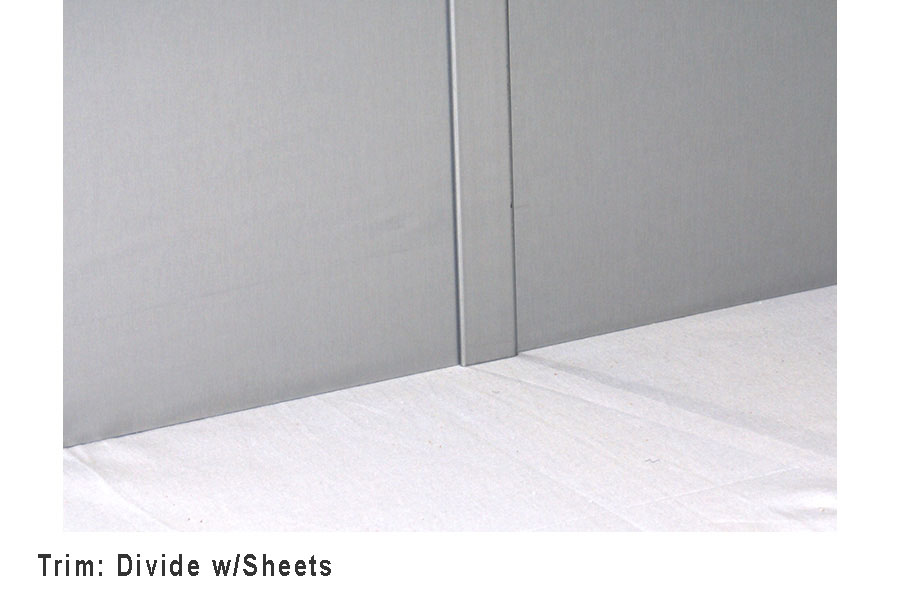

Divide
The divide trim molding is made from our 24 gauge 316 stainless steel sheet stock. Divide trim molding is used to join two adjacent sheets on the same wall. The pocket for each side is 7/16", and subtracting 1/8" from each sheet will accommodate for this trim.

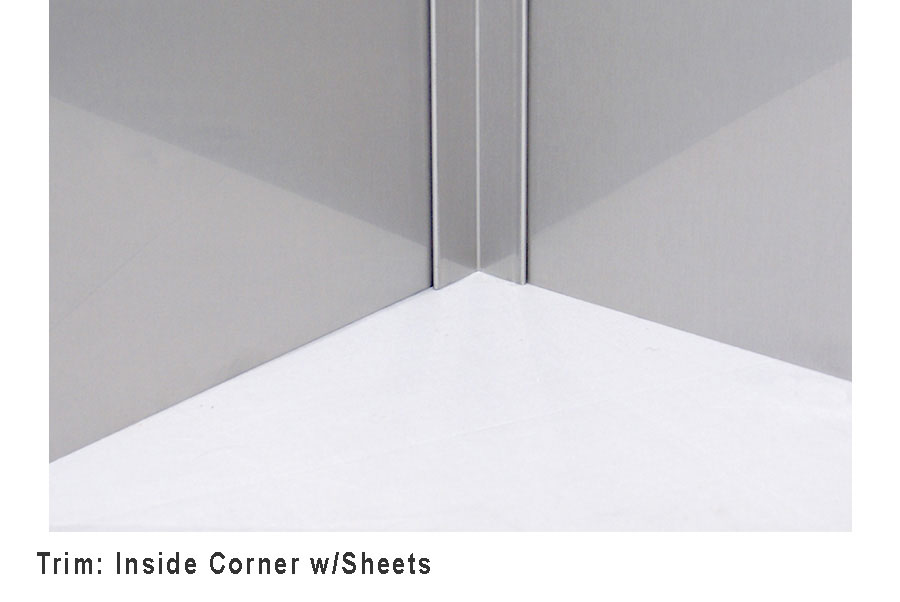

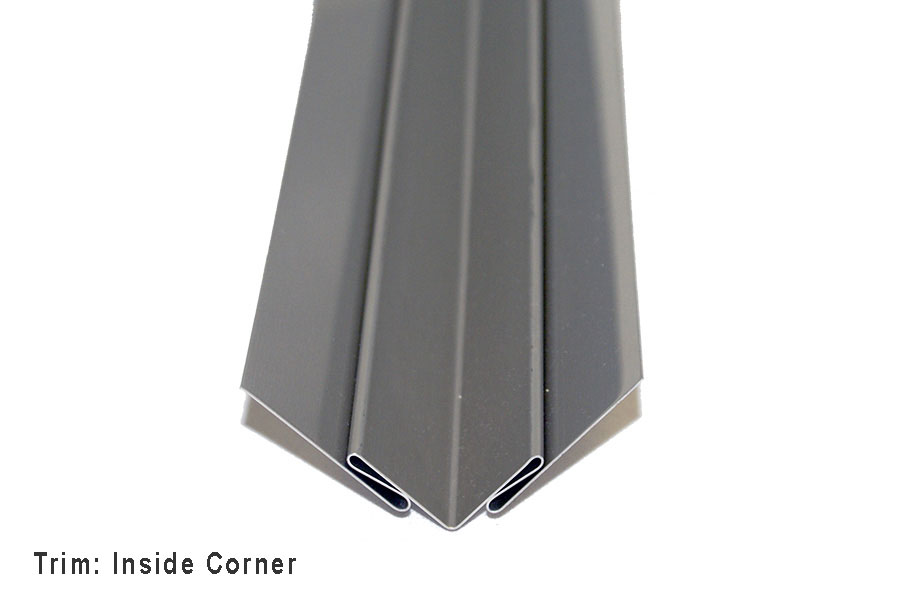

Inside Corner
The inside corner trim molding is made from our 24 gauge 316 stainless steel sheet stock. Inside corner trim molding is used to join two sheets at 90 degrees on an inside corner. The pocket for each side is 3/4", and subtracting 7/8" from the sheet size will accommodate for this trim.

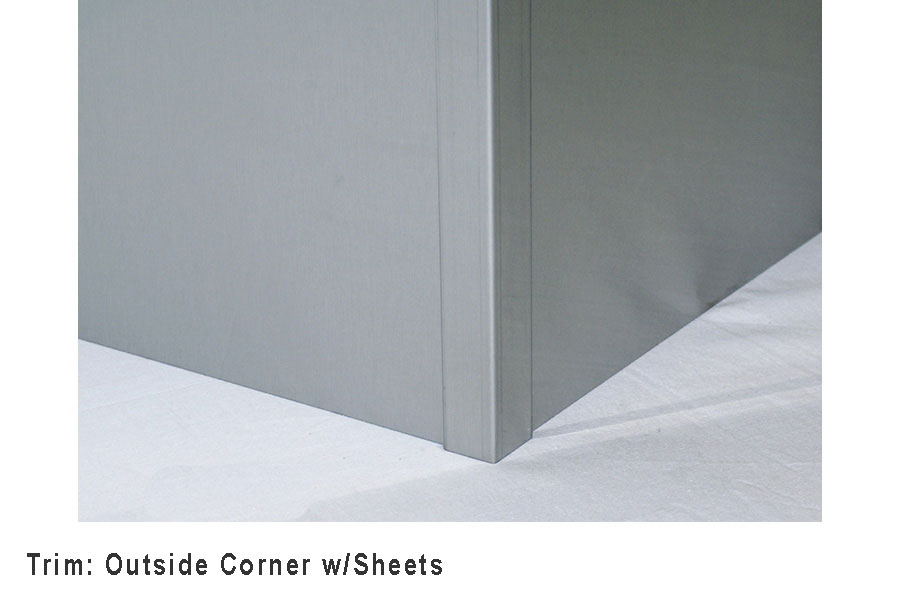

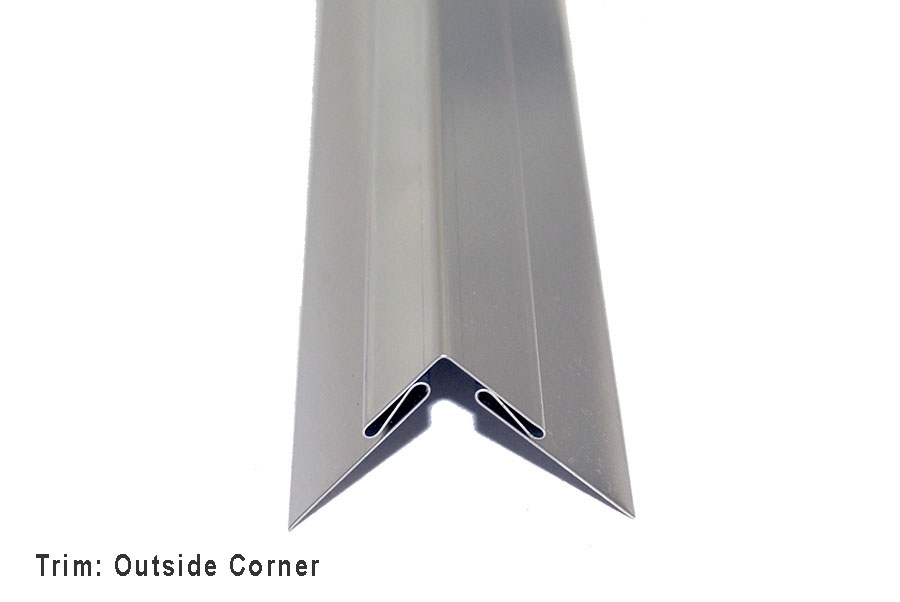

Outside Corner
The outside corner trim molding is made from our 24 gauge 316 stainless steel sheet stock. Outside corner trim molding is used to join two sheets at 90 degrees on an outside corner. The pocket for each side is 3/4", and subtracting 3/16" from the sheet size will accommodate for this trim.

Note:
-When ordering material, you will need to subtract from the sheet size to account for the trim (see drawings).
-Trim molding can be attached to the wall with screws, nails, or adhesive prior to installing the sheets.

Cost Calculator

STEP 2: Standard Or Cut To Size

Step 2: Standard Or Cut To Size
Cut To Your Size
Standard Sizes


Feet Inches Fractions
Click Here for Wholesale Pricing Information
Qty:

QUANTITY DISCOUNTS

QUANTITY DISCOUNT PRICE/PIECE
11 - 30 10% Discount
31+ 20% Discount

STEP 4: Fabrication Options

All cuts are guaranteed to be +.125" -0" (+1/8" -0")
Please note that cuts less than a whole inch will be priced at the next full inch price.
