Custom Z-Channel - Diamond Tread Plate
Jump To Cost Calculator
Description
Product Description

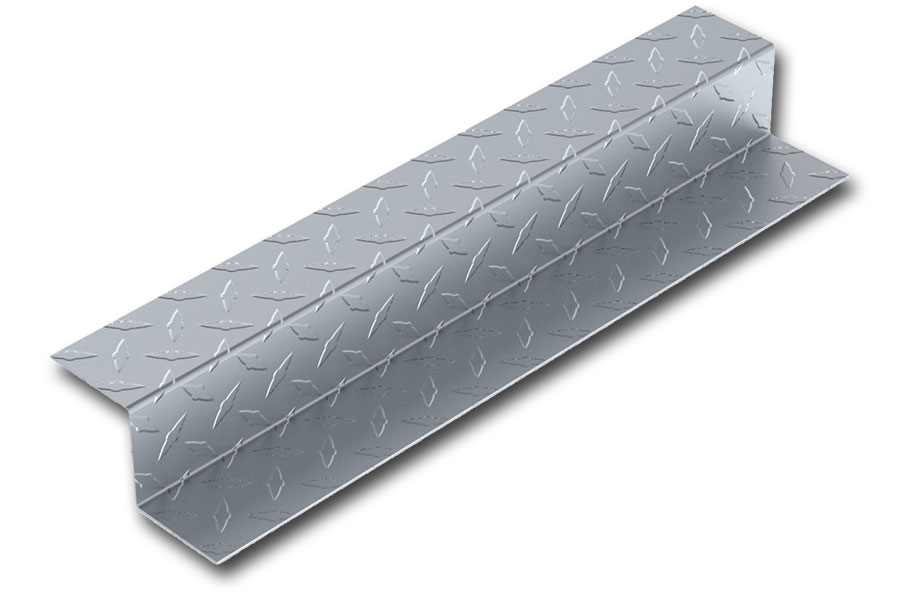

3003-H22 custom Z-Channel aluminum bright diamond tread plate has the same properties as the standard 3003 aluminum, but with the raised tread pattern for an aesthetic appeal or where better traction may be needed. Aluminum bright diamond tread plate is very commonly used for tool boxes, wall panels, flooring, truck bed liners and trim, garage and workshop outfitting, step plates and any other application that needs the light weight and strength of 3003 aluminum with increased traction of the raised tread pattern.

Unlike structural, extruded Z-Channel, our custom Z-Channel will be cut to your specifications and bent in a press break. Therefore, our custom Z-Channel will give customers more variety of fabrication options, including a wide range of bending angles, hemmed edges (on thinner gauge material), flange options, uneven leg sizes, etc.

On our custom Z-Channel made out of material with a finished side, Stainless Supply also offers the choice of which side the finish side is placed on the custom Z-Channel, which can be selected in Step 2 of the Cost Calculator. For #4 brushed finish, #8 mirror finish, and Bright Annealed (BA) finish stainless steel, the finished side will have a protective film on it to help prevent scratching until the product is delivered. On our smooth finish and tread plate aluminum, there may or may not be a protective film on the material as it is not industry standard to have PVC film. Please contact Stainless Supply if you prefer a scratch free side on mill finish aluminum and a sales representative can verify if it is possible on the aluminum custom Z-Channel that is being ordered.

Currently, Stainless Supply can offer up to 120" (10 foot) lengths of custom Z-Channel. In terms of shipping, UPS and Fed-Ex ground will not take packages over 9 feet in length (including packaging). Therefore, anything over 96" (8 feet) will be rated as a freight shipment after adding it to the shopping cart and typically the shipping price will be higher than ground orders. If you have any questions about freight shipments, please call our office at 877-484-0088.

Cost Calculator

$250 Minimum
(mixing sizes is ok, total calculated in cart)
(Click here for thickness chart)
(Click here for radius information)

STEP 2: Design Your Profile

Step 2: Design Your Profile
These measurements represent: Dimension
Whole #
Fraction
Whole #
Fraction
Whole #
Fraction
Angle 1:
Angle 2:

Tread Side Preference?
(Choose which side of the z-channel will show the "good side" of the metal)

Edge Options:

None Hemming Flanges
Hem Angle 1:
   None
   Inside
   Outside
Hem Angle 2:
   None
   Inside
   Outside
Flange Angle 1:
    None
    Inside
    Outside


Flange Angle 2:
    None
    Inside
    Outside




Flange Width (Inches):

(Holes, key-holes or slots are an option on flanges. Please contact us for a quote or placing an order with these options.)

  Rounded Corners:


     No Yes
    (Click here for more information.)








STEP 3: Custom Or Standard Length

Step 3: Custom Or Standard
  Custom Length
  Standard Length
Click Here for Wholesale Pricing Information
Qty:


QUANTITY DISCOUNTS

QUANTITY DISCOUNT % PRICE/PIECE
11 - 50 10% Discount
51+ 20% Discount
Would you like to receive a scaled measured drawing for approval before we fabricate?

(This option may add more time, typically 1-2 days after your approval)

(Some complicated jobs require approval prior to fabrication)




EMERGENCY RUSH SERVICE AVAILABLE

For standard or shear cut to size orders, typical lead time is 6 days.
For laser orders, typical lead time is 11 days.

We can expedite these orders for an additional charge if the option is selected in your shopping cart. If you have a critical lead time, please feel free to call and place your order via phone: (877) 484-0088

All shear cuts are guaranteed to be ± 1/16".
All laser cuts are guaranteed to be ± 1/64".
Please note that cuts less than a whole inch will be priced at the next full inch price.

Note:
A custom angle setup charge of $27 per thickness will be applied in your cart.





Angle/Channel


Quote Request
File Upload

Click here to submit your request.
