4" Stainless Steel Two Tone Embossed Diamond Pattern : D4TT
Jump To Cost Calculator
Description
More Information
Product Description
D4 is by far our most common pattern and an improvement to the common "quilted pattern." Stainless Supply's design is based on a 2.82" square dimension instead of the common 3". This causes the point to point dimension to be an even 4", allowing the diamonds to be full on all edges of a full 4' x 10' or 4' x 8' sheet. In contrast, the common 3" design will not line up on full sheets and not give a seamless transition to full sheets installed next to each other. Using our trim molding, the pattern on full sheets of quilted stainless steel will appear to run continuously.

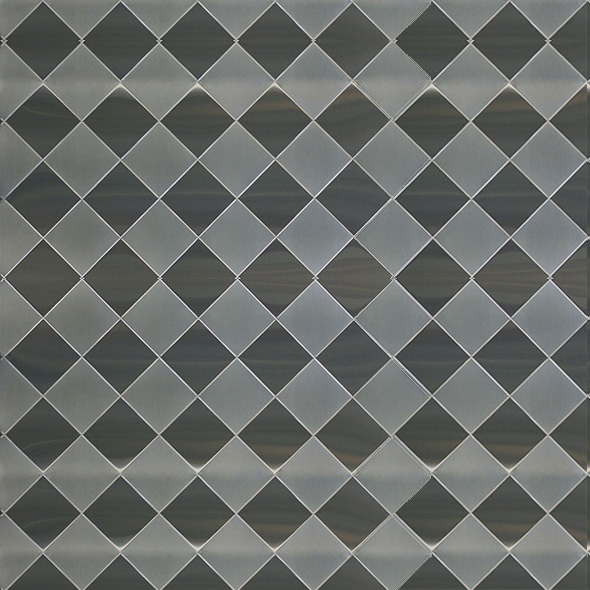

Etched Two Tone - This look is created by taking a regular embossed sheet (either brushed or mirror) and etching alternating sections. This creates a stunning contrast to the base material. The result is a remarkable precision product that most would mistake for individual tiles.

This is made out of your choice of 22 gauge or 24 gauge stainless steel sheet metal. It comes with a PVC film on one side to help protect against scratching during fabrication and installation.

If you need any fabrication (hemming, rounded corners), you must select the "cut to your size" option.

Stainless Supply is the manufacturer and source of embossed stainless steel. We produce our patterns in a high precision machine offering a high quality and more pronounced pattern depth compared to many other manufacturers.

Unless specified, Stainless Supply centers the embossed patterns on custom and cut to size pieces. If you need help with ordering, have a large project that needs quoted, or have any questions, do not hesitate to call us at 877-484-0088.

Cost Calculator

$250 Minimum
(mixing sizes is ok, total calculated in cart)

STEP 3: Standard Or Cut To Size

Step 3: Standard Or Cut To Size
SELECT ONE

Cut To Your Size (square / rectangle)
Cut To Your Size (circle)



Shear Cut ± 1/16" (± 0.062")
Laser Cut ± 1/64" (± 0.015")
(Laser cut orders will incur a $65 setup fee for entire order)


Fraction Decimal
Whole #
Fraction
Whole #
Decimal
.
Whole #
Fraction
Whole #
Decimal
.


Click Here for Wholesale Pricing Information
Qty:


QUANTITY DISCOUNTS

QUANTITY DISCOUNT PRICE/PIECE
11 - 50 10% Discount
51+ 20% Discount

QUANTITY DISCOUNTS

QUANTITY DISCOUNT % PRICE/PIECE
4 - 10 10% Discount
11+ 20% Discount

STEP 5: Fabrication Options





EMERGENCY RUSH SERVICE AVAILABLE

For standard or shear cut to size orders, typical lead time is 6 days.
For laser orders, typical lead time is 11 days.

We can expedite these orders for an additional charge if the option is selected in your shopping cart. If you have a critical lead time, please feel free to call and place your order via phone: (877) 484-0088

All cuts are guaranteed to be +.125" -0" (+1/8" -0")
Please note that cuts less than a whole inch will be priced at the next full inch price.
